Adjustable chokes are forged body constructed and designed for reliable flow control and maximum wear life. The variation in choke size is achieved by rotating hand wheel to obtain desired flow rate at downstream side. Tapered annular port is defined by a tapered plug for metering flow of a fluid. The inside of the choke body is vented to atmosphere after the bonnet nut is partially removed. Under critical applications such as gas wells with high pressure drops, abrasive flow and corrosive conditions, the adjustable chokes are used.
Features:
• Built to suit H2S service and temperatures up to 250 F
• Can be supplied to elevated temperatures and special trims
• Less maintenance.
• Easily automated through pneumatic actuator.
• Wear resistance.
We supply adjustable chokes available in flanged ends in standard orifice sizes from 2 1/16" to 4 1/16" with working pressures from 5,000 psi to 15,000 psi and it confirms with A.P.I 6A standards.
Certifications:
(1) The product manufactured is certified by American Petroleum Institute for the following:
-
ISO 9001:2008
-
ISO/TS 29001standards
-

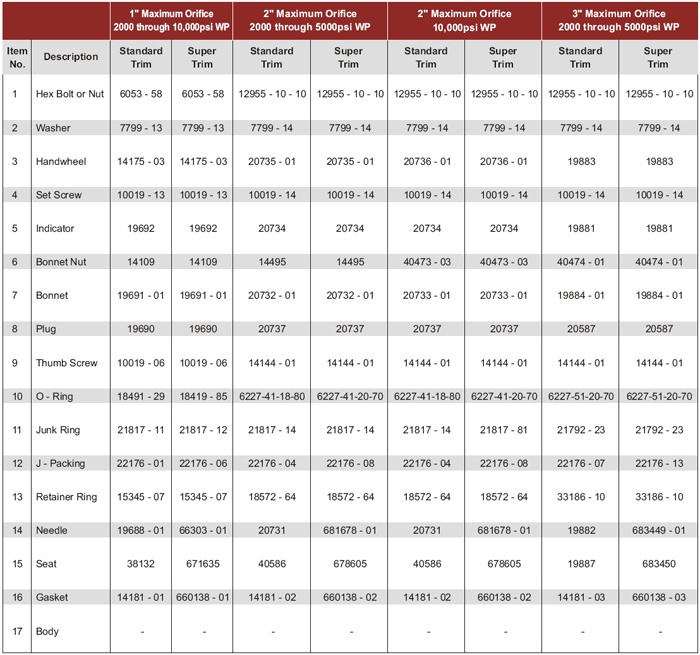

Specifications Q1

|

|

|
 |
Effective Date 8th Nov 2010 |
Effective Date 8th Nov 2010 |
Effective Date 8th Nov 2010 |
Expiry Date 8th Nov 2013 |
Expiry Date 8th Nov 2013 |
Expiry Date 8th Nov 2013 |
Reg. Date 8th Nov 2010 |
Reg. Date 8th Nov 2010 |
Reg. Date 8th Nov 2010 |
(2)Also, certified from T U V South Asia Private Ltd. for ISO 14001:2004 standards.
 |
 |
Effective Date 25th Nov 2010 |
Expiry Date 24th Nov 2013 |
26th Nov 2010 |
