Hydraulic Gate Valves
Hydraulic gate valve (C.I.W Type F.C Model) is available with a manual closing and locking screw. Internal parts are machined accurately for trouble free operation.Body and bonnet are sealed by metal to improve the seal performance .
Product Code
Company Name
Sri Energy Valves Private Limited
Country of Manufacture
Get Latest Price
General Information

Please click on Product Spec and identify the correct Product Code. You may send your Business Enquiry.

Product DescriptionTechnical SpecificationsImage

The valve has bi-directional sealing and a non-rising stem. The Cylinder head allows the piston to cover the exhaust port before the end of the stroke. This arrangement provides enough damping to protect the valve from shock loading. Body has a bottom preparation for installing tail rod and stem protector. The adjusting nut of the cylinder head prevents the pressure to stem by absorbing the pressure applied to the opening side of the valve. F.C gate valve holds the non-rising stem, floating seat ring body bushing design to provide safe dependable service. The tail rod passing from the gate acts as a pressure balance for the stem that connects the gate to the operating piston & compensates for the volume displaced by the operating stem. Ideally, these valves are suited for drilling Manifolds.

•  Hard-faced sealing surface
•  Manual override for closing manually
•  Wear resistance
•  Simple Maintenance

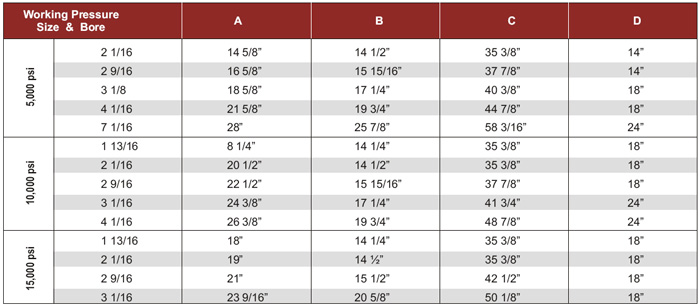

We supply this valve which confirms A.P.I  6A specifications. It is available in flanged ends in standard bore sizes from 1 13⁄16” thru 7 1⁄16” in working pressures of 5,000 psi and 15,000 psi.



(1) The product manufactured is certified by American Petroleum Institute for the following:

  • ISO 9001:2008
  • ISO/TS 29001standards
  • Specifications Q1



Effective Date 8th Nov 2010 Effective Date 8th Nov 2010 Effective Date 8th Nov 2010
Expiry Date 8th Nov 2013 Expiry Date 8th Nov 2013 Expiry Date 8th Nov 2013
Reg. Date 8th Nov 2010 Reg. Date 8th Nov 2010 Reg. Date 8th Nov 2010


(2)Also, certified from T U V South Asia Private Ltd. for ISO 14001:2004 standards.

Effective Date 25th Nov 2010
Expiry Date 24th Nov 2013
26th Nov 2010
