The orifice has a liner of hard, abrasion resistant material. For the effective operation of the valve at rated working pressure, it has accurate dimensions. Internal parts have proper tensile strength. They can be easily replaced to achieve the required flow rate. An adjustable choke can be converted into Positive Choke by replacing the bonnet assembly with an appropriate blanking plug assembly and choke bean. Positive choke finds application in the oil and gas production equipments and wellhead assemblies.
Features:
• Long life and low maintenance
• Wear resistance
• Body-to-bonnet contact eliminates bonnet seal extrusion.

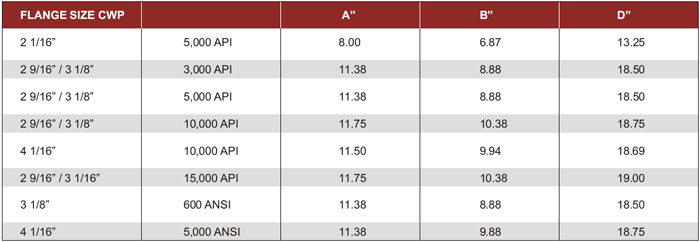

We supply positive chokes available in flanged ends in standard orifice sizes from 2 1/16" to 4 1/16" with working pressures from 3,000 psi to 15,000 psi and it confirms with A.P.I 6A standards.
Certifications:
(1) The product manufactured is certified by American Petroleum Institute for the following:
-
ISO 9001:2008
-
ISO/TS 29001standards
-
Specifications Q1
|
|
|
 |
|
Effective Date 8th Nov 2010 |
Effective Date 8th Nov 2010 |
Effective Date 8th Nov 2010 |
|
Expiry Date 8th Nov 2013 |
Expiry Date 8th Nov 2013 |
Expiry Date 8th Nov 2013 |
|
Reg. Date 8th Nov 2010 |
Reg. Date 8th Nov 2010 |
Reg. Date 8th Nov 2010 |
(2)Also, certified from T U V South Asia Private Ltd. for ISO 14001:2004 standards.
 |
 |
|
Effective Date 25th Nov 2010 |
|
Expiry Date 24th Nov 2013 |
|
26th Nov 2010 |
